- Input connector
- 1/4" jack
- Input impedance
- 500 kOhm / 100pF
- Gain range
- -96 to 36dB
- Bass
- 80Hz @ Gain: -24 to 0dB; 100Hz @ Gain 0 to +15dB
- Mid
- 500Hz @ Gain: -24 to 0dB; 800Hz @ Gain 0 to +15dB & 0 to -12 dB
- Treble / Tweeter Tone
- Center Freq.: 1800Hz @ Gain: -24 to 0dB; 5000Hz @ Gain 0 to +15dB
- Tone Print
- 0 to 10 embedded parameters for TonePrints
- Tuner
- Bass Tuner, always on
- Tuning range
- B0 (30.87Hz) to G4 (392.00Hz)
- Mute
- Mutes speaker out, Phones out and Balanced out
- Master Level / Headphones Output
- Studio quality headphone amp
- HP Out Impedance
- 40 to 600Ohm

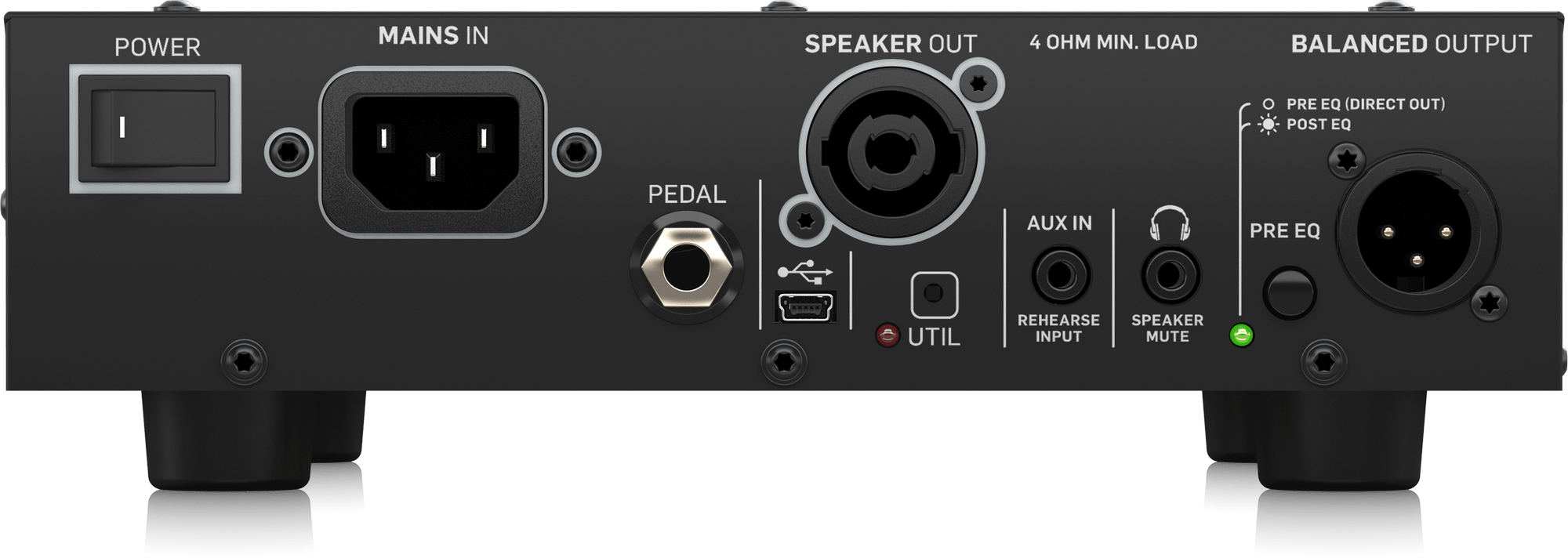

- Speaker output
- Industry-standard 4-pole twist-lock speaker connectors
- Balanced output
- Balanced XLR, Pre/Post Pre-amp
- Bal. Out Max.
- +2dBu
- Bal. Out Optimal Load Impedance
- 600 Ohm
- Rehearsal input
- 1/8" jack input, fits to iPod®
- Humidity
- Max. 90 % non-condensing
- Dimensions
- 220 x 63 x 231 mm / 8.7" x 2.5" x 9.1"
- Weight
- 1.8kg / 4 pounds
- Finish
- Brushed and anodized aluminum front plate/ Metal chassis
